Aplus Framework Debug Library

Aplus Framework Debug Library.

Installation

The installation of this library can be done with Composer:

composer require aplus/debug

Exception Handler

The ExceptionHandler class acts by catching exceptions and shows a screen according to the environment, production or development.

Optionally, it can receive an instance of a logger to save messages from exceptions.

In the example below, we see a basic configuration to initialize by setting the object as an exception handler in a production environment:

use Framework\Debug\ExceptionHandler;
use Framework\Log\Loggers\SysLogger;

$logger = new SysLogger();

$exceptionHandler = new ExceptionHandler(
    ExceptionHandler::PRODUCTION,
    $logger
);
$exceptionHandler->initialize();

In the initialize method it is possible to pass a argument to also set the object as the error handler, which is the default. If you don't want to set it as an error handler, pass the first argument to false:

$exceptionHandler->initialize(false);

Production Environment

When the environment is production, a simple screen will appear informing that something went wrong and, if the logger is set, the log id will appear:

use Framework\Database\Database;

$database = new Database('root', 'lupalupa', logger: $logger);
Aplus Debug - Exception Handler in Production

It is possible to customize this screen by setting a view file using the setProductionView method. See the original files inside the src/Views/exceptions directory.

Show Log Id

By default, the log id is shown in the production view.

If for some reason you don't want the log id to be shown, disable it as per the example below:

$exceptionHandler->setShowLogId(false);

Development Environment

When the ExceptionHandler environment is set to development, a screen is shown with much more details about the exception; the message, file location and line number, trace, server input information, and the latest log.

$exceptionHandler = new ExceptionHandler(
    ExceptionHandler::DEVELOPMENT,
    $logger
);

Example:

Aplus Debug - Exception Handler in Development

The development view can also be customized. Set the file path via the setDevelopmentView method.

Hidden Inputs

All input global variables ($_COOKIE, $_ENV, $_FILES, $_GET, $_POST and $_SERVER) are shown on the exception page under development.

If you want to hide any of them, do so as per the following example:

$exceptionHandler->setHiddenInputs('$_ENV', '$_POST');

Search Engine

On the development page there is a link to search for the exception in a search engine.

You can choose between several predefined engines:

The default engine is google.

If you want to change to another engine, do as in the example below:

$exceptionHandler->getSearchEngines()->setCurrent('bing');

Command Line

When the exception is thrown on the command line, it will be shown as in the example below:

Aplus Debug - Exception Handler in CLI

Language

ExceptionHandler texts can be customized, using an instance of the Language class, which can be passed by the constructor or the setter:

use Framework\Language\Language;

$language = new Language('es');
$exceptionHandler->setLanguage($language);

Example of the exception page in production with the Spanish language:

Aplus Debug - Exception Handler in Production with Spanish language

JSON Responses

If the server variable $_SERVER['HTTP_ACCEPT'] contains application/json or the variable $_SERVER['HTTP_CONTENT_TYPE'] starts with application/json the exception response page will be a page with JSON.

Below is an example of what the body of the responses will look like:

JSON in Production

The production page is very simple. Remember that the log id can be disabled:

{
  "status": {
    "code": 500,
    "reason": "Internal Server Error"
  },
  "data": {
    "message": "Something went wrong. Please, back later.",
    "log_id": "632617344ccd"
  }
}

JSON in Development

The development page contains detailed information about the exception:

{
  "status": {
    "code": 500,
    "reason": "Internal Server Error"
  },
  "data": {
    "exception": "mysqli_sql_exception",
    "message": "Access denied for user 'root'@'localhost'",
    "file": "/var/www/app/vendor/aplus/database/src/Database.php",
    "line": 230,
    "trace": [
      {
        "file": "/var/www/app/vendor/aplus/database/src/Database.php",
        "line": 230,
        "function": "real_connect",
        "class": "mysqli",
        "type": "->"
      },
      {
        "file": "/var/www/app/vendor/aplus/database/src/Database.php",
        "line": 103,
        "function": "connect",
        "class": "Framework\\Database\\Database",
        "type": "->"
      },
      {
        "file": "/var/www/app/public/index.php",
        "line": 19,
        "function": "__construct",
        "class": "Framework\\Database\\Database",
        "type": "->"
      }
    ],
    "log_id": "01884d106dd9"
  }
}

JSON Flags

The default flags for encoding JSON data are:

$flags = JSON_THROW_ON_ERROR | JSON_UNESCAPED_SLASHES | JSON_UNESCAPED_UNICODE;

You can customize them as per the following example:

$flags = JSON_THROW_ON_ERROR | JSON_PRETTY_PRINT;
$exceptionHandler->setJsonFlags($flags);

Debugger

The Framework\Debug\Debugger class has methods to help debug and, mainly, render the debugbar.

<?php
require __DIR__ . '/../vendor/autoload.php';

use Framework\Debug\Debugger;

$debugger = new Debugger();

echo $debugger->renderDebugbar();

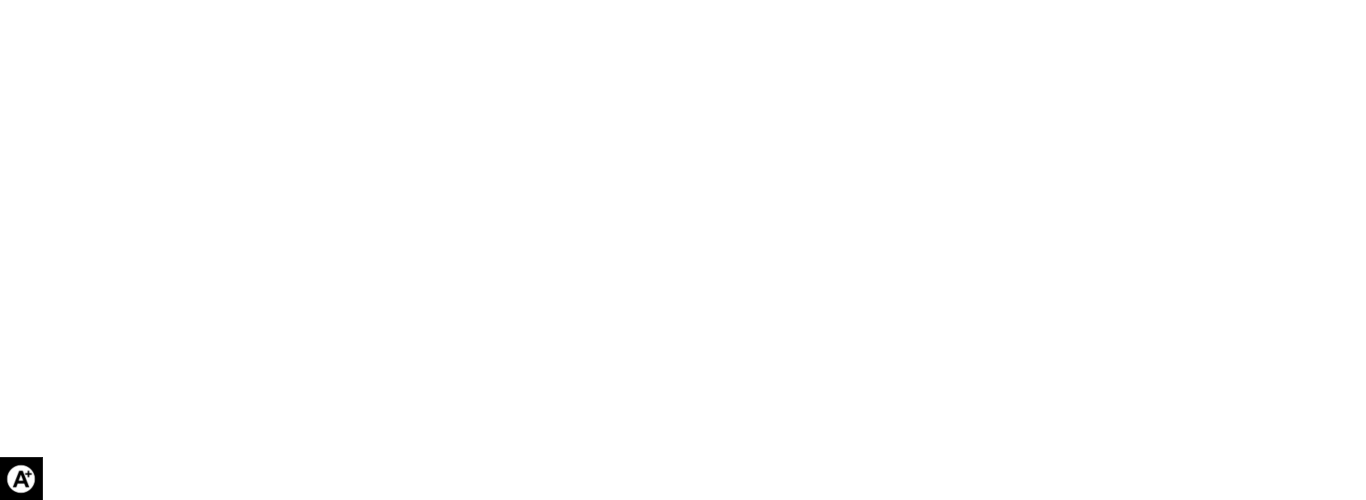

The first time you render the debug bar it will be collapsed to the bottom left of the page:

Aplus Debug - Debugbar Closed

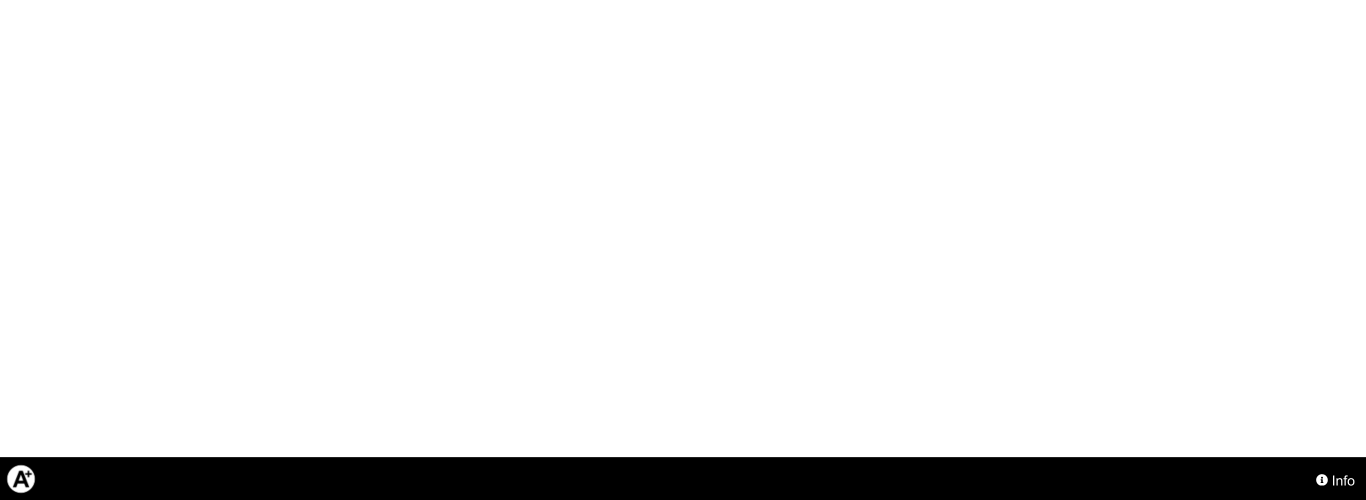

When you click on the debug bar image, it will extend to the right of the page, showing the "info" button:

Aplus Debug - Debugbar Open and Empty

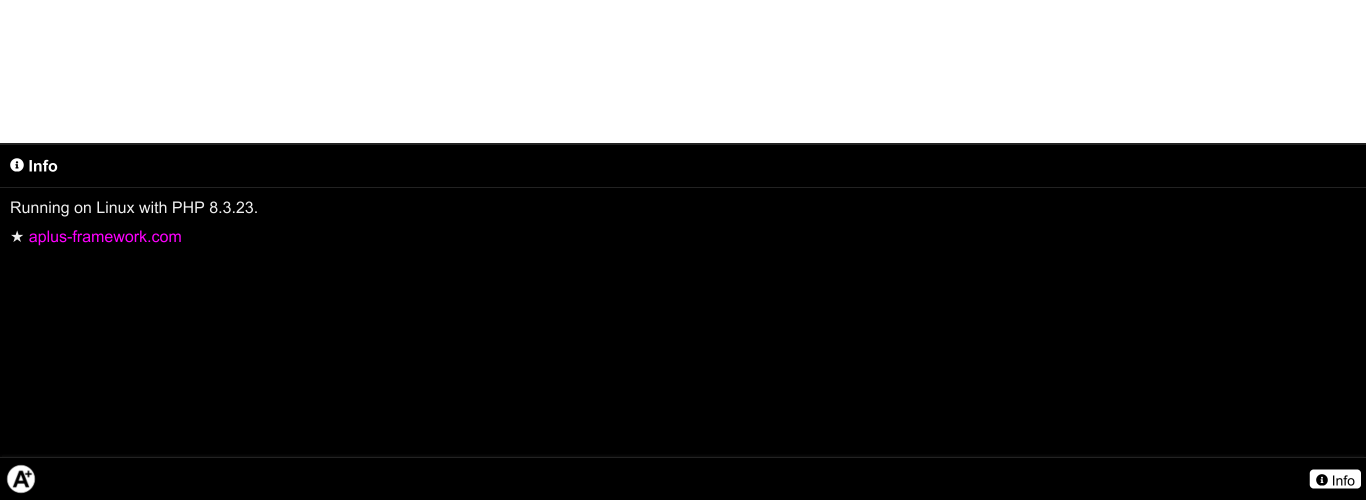

When you click on the info button, the panel will open and you will be able to see some debug information:

Aplus Debug - Open With Info Empty

Collections

Collections with information collected from various services can be added to the debug bar.

See below how to create a collection:

use Framework\Debug\Collection;

...

class DatabaseCollection extends Collection
{
}

$collection = new DatabaseCollection('Database');
$debugger->addCollection($collection);

The "Database" collection is created and added to the Debugger.

Collection Icon

All collections can have an icon. Its path can be defined as in the example below:

class DatabaseCollection extends Collection
{
    protected string $iconPath = __DIR__ . '/database.svg';
}

Icons downloaded from Font Awesome are used in the Aplus Framework libraries.

You can choose any icon you want from an SVG image. Copy and paste it into your project.

To make the icon color change according to the text color, open the SVG file and look for the path tag. In it, add the attribute fill="currentColor" as shown in the example below and save the image.

<svg ...>...<path fill="currentColor" d="..."/></svg>

Next you will see the collection icon in action.

Collectors

Every collection must have debug data collectors, which should be displayed in the panel content.

See below how to add a collector to the collection:

use Framework\Debug\Collector;

...

class DatabaseCollector extends Collector
{
    public function getContents() : string
    {
        return 'Collector: ' . $this->getName();
    }
}

$defaultCollector = new DatabaseCollector();
$collection->addCollector($defaultCollector);

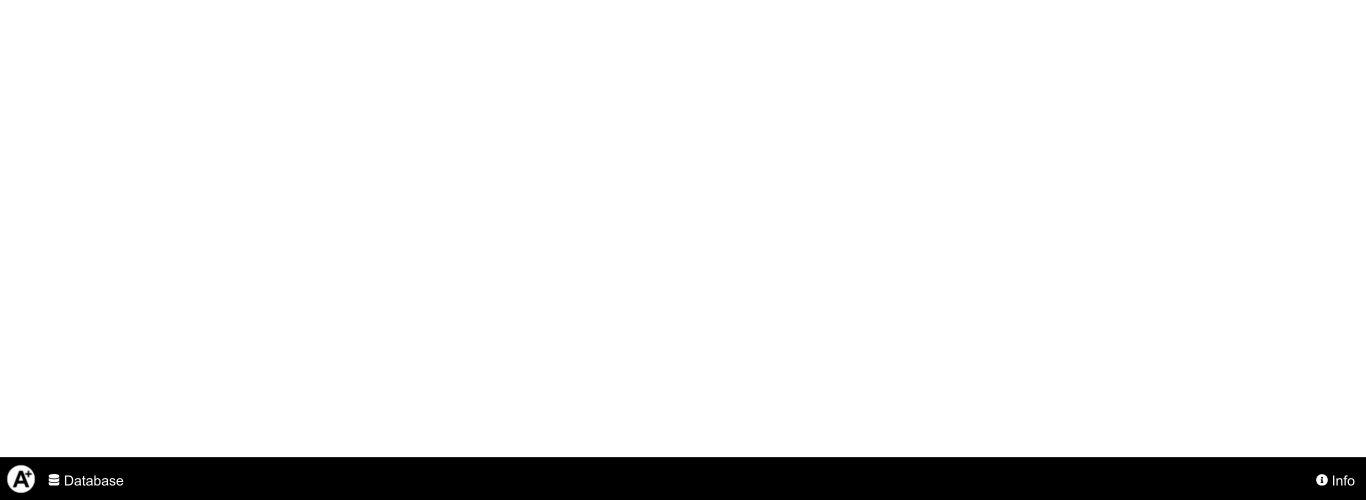

Once done, the collection will appear in the debugbar with its icon and name:

Aplus Debug - Debugbar With Default Collector

After clicking the collection button, a panel will open showing its contents:

Aplus Debug - Debugbar With Default Collector

You can add as many collectors as you want.

The example below shows how to add another collector. Think of it as another instance connecting to a different database:

...

$otherCollector = new DatabaseCollector('other');
$collection->addCollector($otherCollector);

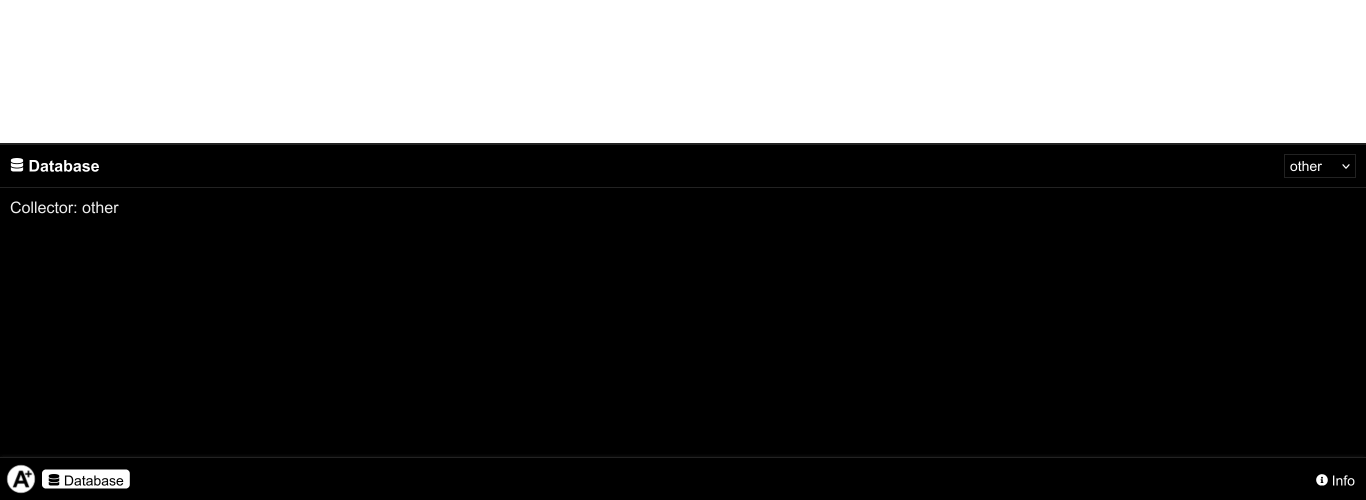

Note that in the upper right part of the panel, a selection menu will appear in which you can change the collector that is shown in the panel contents:

Aplus Debug - Debugbar With Other Collector

Collector Activities

Every collector can collect activity data that can be displayed in the content panel, the information panel, or both.

See below how to return activities that will be merged between all debugger collectors and will appear in the info panel:

<?php
...

class DatabaseCollector extends Collector
{
    public function getActivities() : array
    {
        $activities = [];
        foreach ($this->getData() as $index => $data) {
            $activities[] = [
                'collector' => $this->getName(),
                'class' => static::class,
                'description' => 'Statement ' . ($index + 1),
                'start' => $data['start'],
                'end' => $data['end'],
                'statement' => $data['statement'],
            ];
        }
        return $activities;
    }
}

Collector Contents

So far, we've seen a very simple panel, showing only the collector's name.

In the example below, we will update the getContents method to return only the collector name if there are no activities and a table with details if there are activities:

<?php
...

class DatabaseCollector extends Collector
{
    ...
    public function getContents() : string
    {
        ob_start();
        ?>
        <p>Collector: <?= $this->getName() ?></p>
        <?php
        $activities = $this->getActivities();
        if (empty($activities)) {
            return ob_get_clean();
        }
        ?>
        <table>
            <thead>
            <tr>
                <th>#</th>
                <th>Statement</th>
                <th>Time</th>
            </tr>
            </thead>
            <tbody>
            <?php foreach ($activities as $index => $activity) : ?>
                <tr>
                    <td><?= $index + 1 ?></td>
                    <td>
                        <pre class="language-sql"><code><?= htmlentities($activity['statement']) ?></code></pre>
                    </td>
                    <td><?= Debugger::roundSecondsToMilliseconds($activity['end'] - $activity['start']) ?></td>
                </tr>
            <?php endforeach ?>
            </tbody>
        </table>
        <?php
        return ob_get_clean();
    }
}

The panel hasn't changed visually because no data has been collected:

Aplus Debug - Debugbar Collector With No Statement

Next, we'll see how to collect data and how it will be presented within the table.

Collecting Data

See the example below for how to collect data from a database connection:

$mysqli = new mysqli('localhost', 'root', 'password', 'test');

$statement = 'SELECT * FROM `users` WHERE `id` = 1';
$start = microtime(true);
$result = $mysqli->query($statement);
$end = microtime(true);

$defaultCollector->addData([
    'start' => $start,
    'end' => $end,
    'statement' => $statement,
]);

$statement ='SELECT * FROM `posts` WHERE `user_id` = 5';
$start = microtime(true);
$result = $mysqli->query($statement);
$end = microtime(true);

$defaultCollector->addData([
    'start' => $start,
    'end' => $end,
    'statement' => $statement,
]);

Note that the data was collected only by the "default" collector.

If you have another connection you can collect data with the collector "other" or any other name.

See below how the contents were rendered in the "default" collector panel in the "Database" collection:

Aplus Debug - Debugbar Collector With Statements

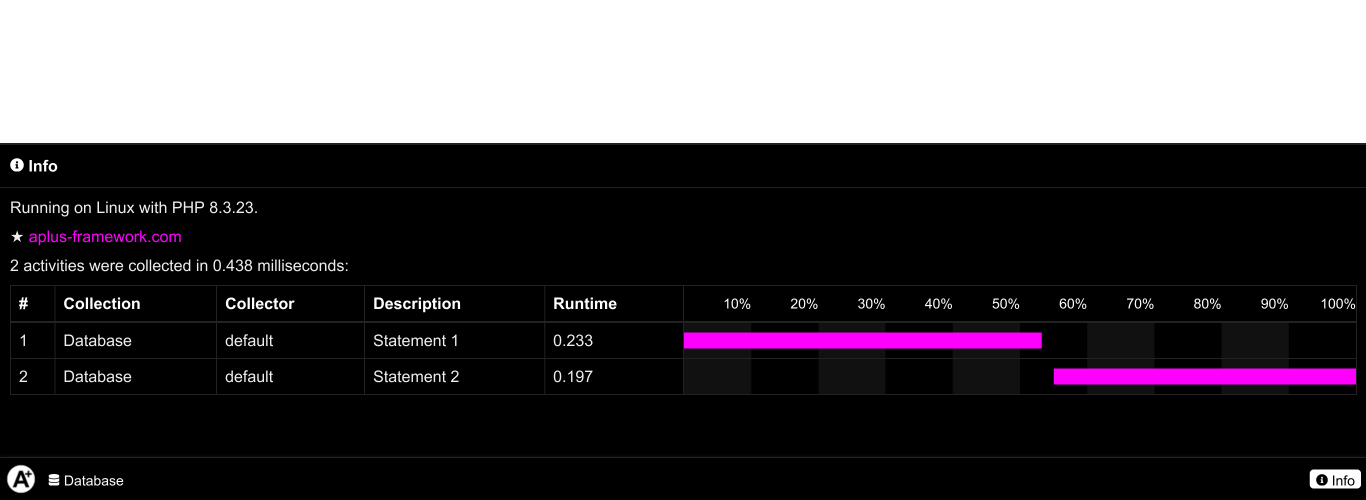

And also, the collected activities will appear in the info panel:

Aplus Debug - Debugbar Info With Activities

Options

The debugger allows for several customizations to make the debug bar fit your brand.

The available options are:

Icon Path

Using the icon_path option you can set a different icon:

$debugger->setOption('icon_path', __DIR__ . '/logo-circle.png');
Aplus Debug - Debugbar With Custom Icon

Primary Color

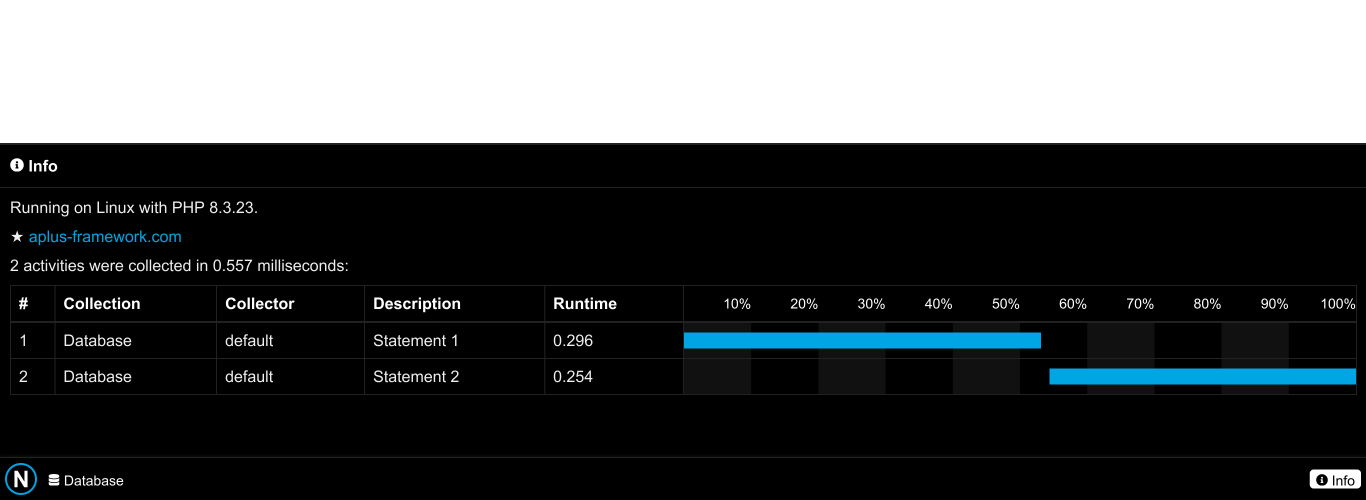

Using the color option you can set a different primary color:

$debugger->setOption('color', '#00a5e3');
Aplus Debug - Debugbar With Custom Color

Info Contents

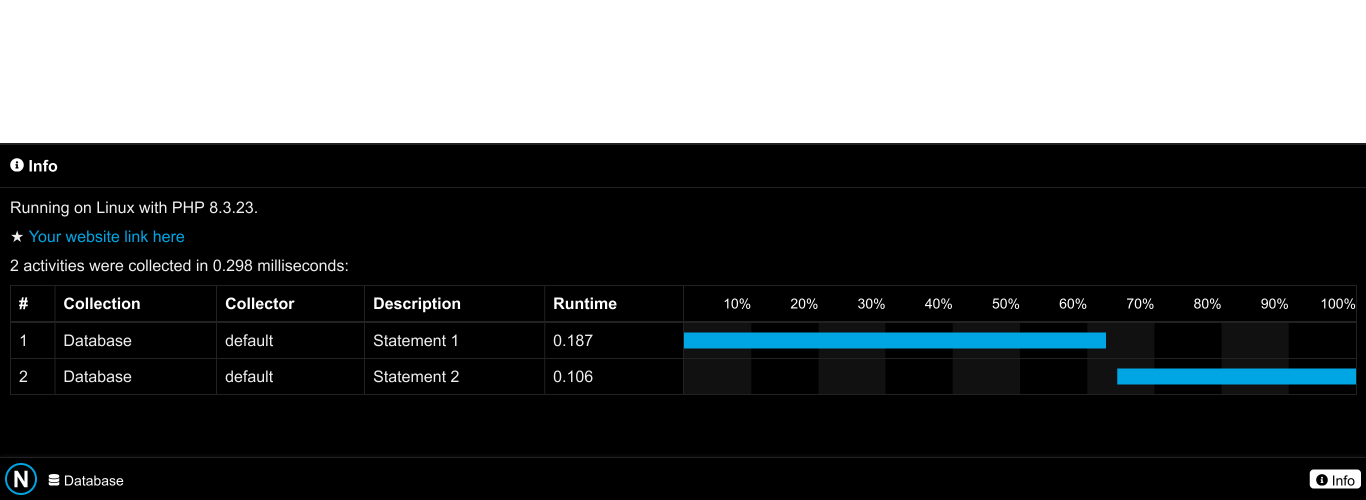

Using the info_contents option, you can set different content for the info:

$debugger->setOption(
    'info_contents',
    '<p>★ <a href="https://domain.tld">Your website link here</a></p>'
);
Aplus Debug - Debugbar With Custom Info Contents

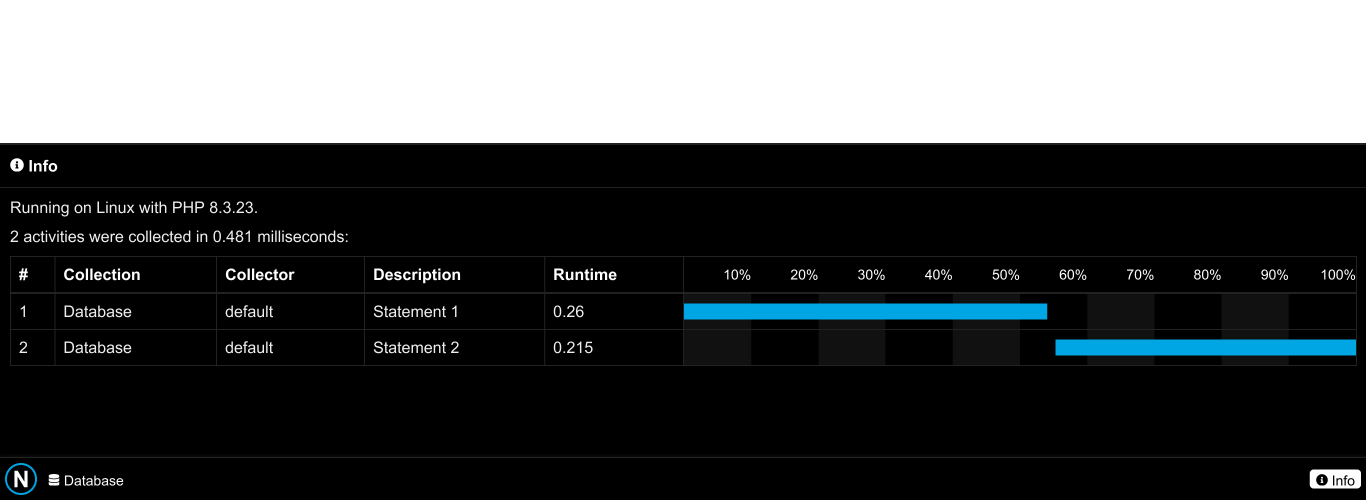

It is also possible to remove personalized content from the info:

$debugger->setOption('info_contents', '');
Aplus Debug - Debugbar With Custom Info Contents Disabled

You can toggle the debugbar by pressing the Ctrl + F12 keys.

Using the setDebugbarView method you can set a custom debug bar view for your brand.

To see the debugbar being used in a real project, try the App Project.

Conclusion

Aplus Debug Library is an easy-to-use tool for, beginners and experienced, PHP developers.
It is perfect for high-level debugging and exception handling.
The more you use it, the more you will learn.
